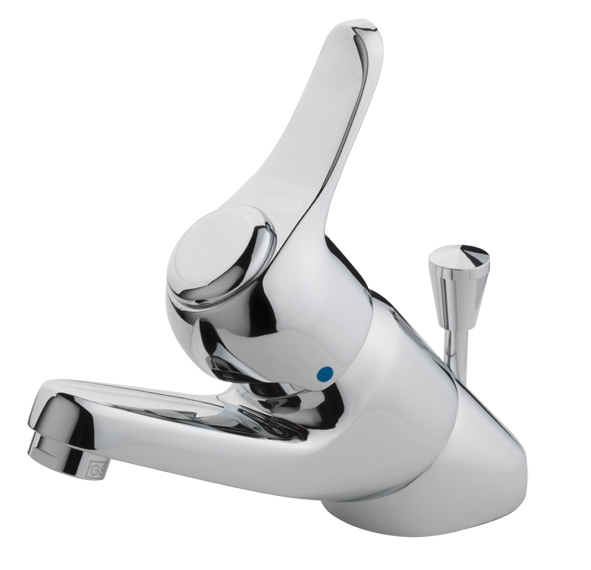

Single Hole Sink Faucet

Swivel spout, metal piston cartridge
With pop-up assembly.

>>Drawing [35 KB]

Single Hole Sink Faucet

Swivel spout, metal piston cartridge
Without pop-up assembly

>>Drawing [22 KB]

Shower Faucet – wall mounted, bottom outlet– for connection with shower hose (see drawing)

Metal piston cartridge

>>Drawing [37 KB]

Shower Faucet – wall mounted, top outlet– for connection with shower hose (see drawing)

Metal piston cartridge

>>Drawing [36 KB]

Thermostatic Shower Valve ½"

>>Drawing [44 KB]

Tub - or Shower Faucet

Metal piston cartridge

>>Drawing [23 KB]

Tub and Shower Faucet – wall mounted – for connection with shower hose (see drawing)

Metal piston cartridge, swivel spout.

>>Drawing [35 KB]

Thermostatic Mixing Valve ½" – Tub and Shower – automatic diverter

>>Drawing [40 KB]

Tub and Shower Faucet with automatic diverter

Metal piston cartridge

>>Drawing [23 KB]

Single Hole Bidet Faucet

Swivel spout, metal piston cartridge
With pop-up assembly

>>Drawing [47 KB]

Kitchen Faucet

Swivel spout, metal piston cartridge

>>Drawing [24 KB]

Kitchen Faucet

Swivel spout, pull-out spray, metal piston cartridge

>>Drawing [28 KB]
